C-30 Industrial Overhead door
C-30 Industrial Overhead Door
C-30 Industrial Overhead Door
C-30 Industrial Overhead Door
C-30 Industrial Overhead door
C-30 Industrial Overhead Door
C-30 Industrial Overhead Door
C-30 Industrial Overhead Door

Share:

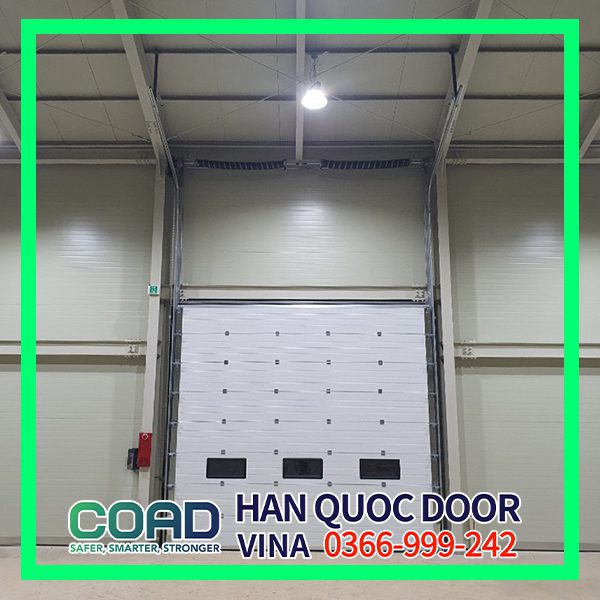

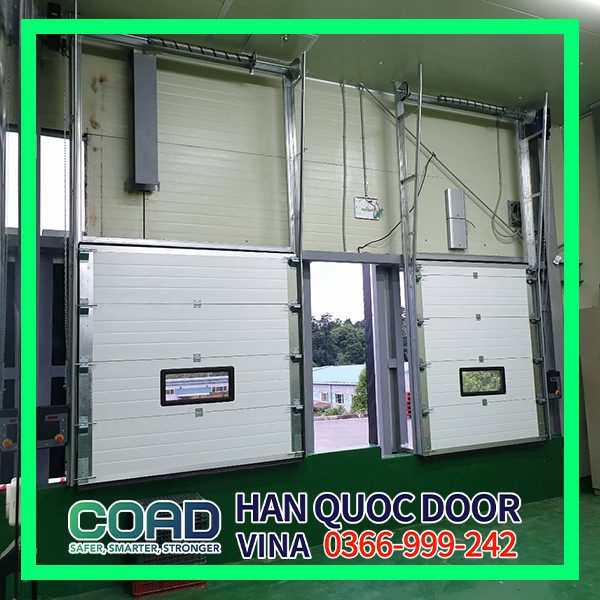

C-30 Industrial Overhead Door

Max size:

(W) 11000mm * (H) 8000mm

Opening/closing speed

0.2~0.3m/s

Maximum wind speed

45m/s

Thermal conductivity

0.021W/mk

Operation principle

Cable

Rolling door type

Basic series of slidings doors, vertical

Panel

Polyurethane (PU) 50mm

Motor

OVERHEADDOOR WORM GEAR MOTOR (90Nm-160Nm)

Outstanding Features

Using high density Polyurethane Panels for sound insulation, heat insulation, impact resistance, helps prevent temperature, dirt, insects from entering the house, warehouse. Suitable for goods storage, transportation warehouse, factory, production workshop, garage. As a product line that saves energy, has good anti-theft and heat insulation ability, smooth operation, durability, and safety for users.

Order now

Lines Overhead Door:

See details:

C-20 C-30

Specifications

C-20 Stacking
Overhead Door
C-30 Industrial
Overhead Door
Maximum size
(W) 8000mm * (H) 5000mm
(W) 11000mm * (H) 8000
Opening/closing speed
0.3~0.7m/s
0.2~0.3m/s
Maximum wind speed
45m/s
45m/s
Thermal conductivity
0.021W/mk
0.021W/mk
Operation principle
Chain
Cable
Rolling door type
Stacking
Basic series of sliding doors, vertical
Panel
Polyurethane (PU) 50mm
Polyurethane (PU) 50mm
Motor
SUMITOMO HYPONIC-GEARED MOTOR(IP44)
OVERHEADDOOR WORM GEAR MOTOR (90Nm-160Nm)
Outstanding Features

Specialized for narrow ceilings, 3 times faster than conventional doors

Save energy and provide an effective anti-theft solution

PRODUCT

High Speed Door

Overhead Door

High Speed Door are frequently erected at the entrance and exit points of factories, transportation yards, and warehouses, among other places. Automatic mechanism with fast opening/ closing speed helps prevent insects, dirt, copper, time control, and temperature stability. Well integrated with a variety of sensors, simple to install in a variety of industries, and processed in compliance with food hygiene and safety regulations such as GMP, HACCP, and ISO.

High Speed Door product line implemented in a variety of factories.

Cửa cuốn nhanh tiết kiệm C-VE (Standard) Model View products
Cửa cuốn nhanh tiêu chuẩn C-1 (Deluxe) Model View products
Cửa cuốn nhanh tự phục hồi C-3 màu xanh C-3 (Premium) Model View products

Overhead Door are a type of automatic door with sound and heat insulation that is designed for industrial enterprises and garages. Prevent pennetration from the outside environment, such as temperature, noise, humidity, dust, wind, and insects,.. Overhead Door can help businesses save money on energy expenditures.

Cửa trượt trần dây xích C-20 Stacking Overhead Door View products
Cửa trượt trần dây cáp C-30 Industrial Overhead Door View products

Sensor

3-button remote control

  • 3-button design [Close/Open/Emergency Stop]
  • Emergency stop button: PUSH TURN RESET SWITCH (Push/rotate switch)
  • In case of emergency or need to check or repair, just press the button once, the door will immediately stop. When you need the door to work again, just turn the push button again

Safety sensor

  • Safety sensor of automatic door
  • Detect the different height of vehicles and people
  • Sun resistant(75,000Laux). Max. detection area is 10m

Air pressure sensor

  • Installed under the bottom bar of the door
  • In the event of a collision while the door is lowering, the door will immediately stop and reverse to protect people and vehicles from collision

Controller

1. C-20

  • Use single phase, 220V, 60Hz power supply.
  • How to operate the motor: Using a dedicated inverter motor, you can control SOFT-START/SOFT-STOP and adjust the speed easily
  • Constructed by DSP and CPU dedicated to controlling overhead door. Equipped with OVER-RUN control function and change the opening height (clearance height) during operation
  • Equipped with the function of storing error codes (ERROR CODE) that may arise during operation to quickly detect fault items, to support easy maintenance and repair
  • Support selection of door control method by limit switch or rotary encoder (Encoder)

2. C-30

  • Extended engine life thanks to SOFT STOP/START . function
  • Door status can be checked by external LED
  • Dedicated position control function LIMIT TYPE
    Convenient to use with two modes: Automatic (Auto) and Manual use (Manual)
  • Special design panel, waterproof, prevent outside agents from entering
  • Can be combined with the use of safety sensors
  • Capable of saving error codes

Motor

C-20 overhead door motor: Hyponic motor

  • Vertical axis reducer with high efficiency: About 20% efficiency higher than worm gear; more than 85% efficiency of reducer
  • Low noise & low vibration than worm reducer/ average 52 ~ 65 dB
  • Increased gear strength and lifespan through carburizing heat treatment
  • Lightweight and optimization: Installation space saving and case and reducer weight reduction by offset

C-30 industrial overhead door motor: Industrial door motor (KG 50/KG 60)

  • Compact size, can be installed in tight, narrow areas
  • Outstanding winning ability
  • Easy installation and maintenance with motor-mounted handle
  • Easy to open and close the door with a chain, suitable for many controllers
  • High efficiency, long life
